Technical Documentation v1.3
H2H Dynamic QRIS MPM SNAP

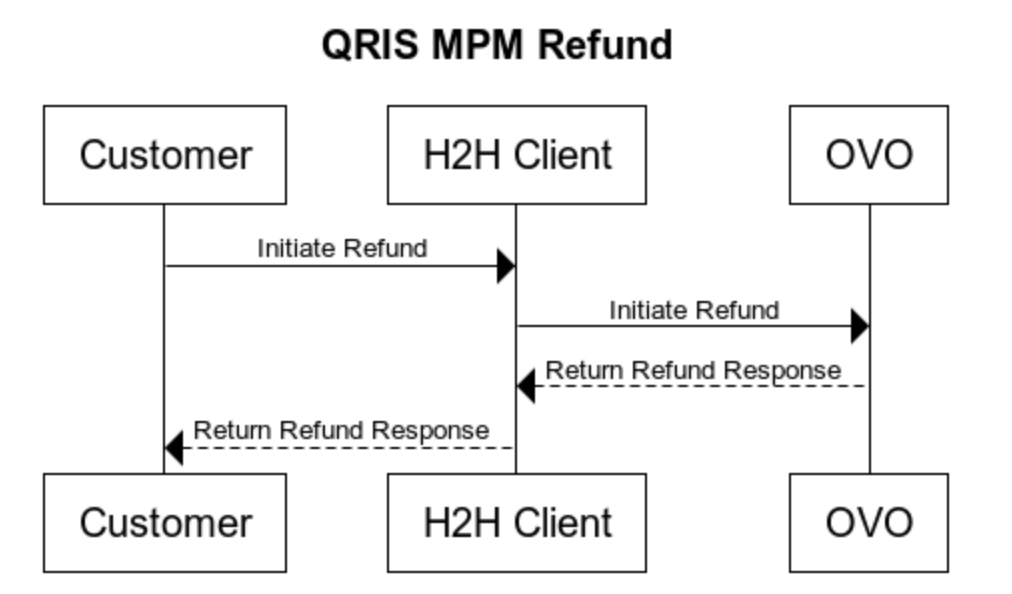

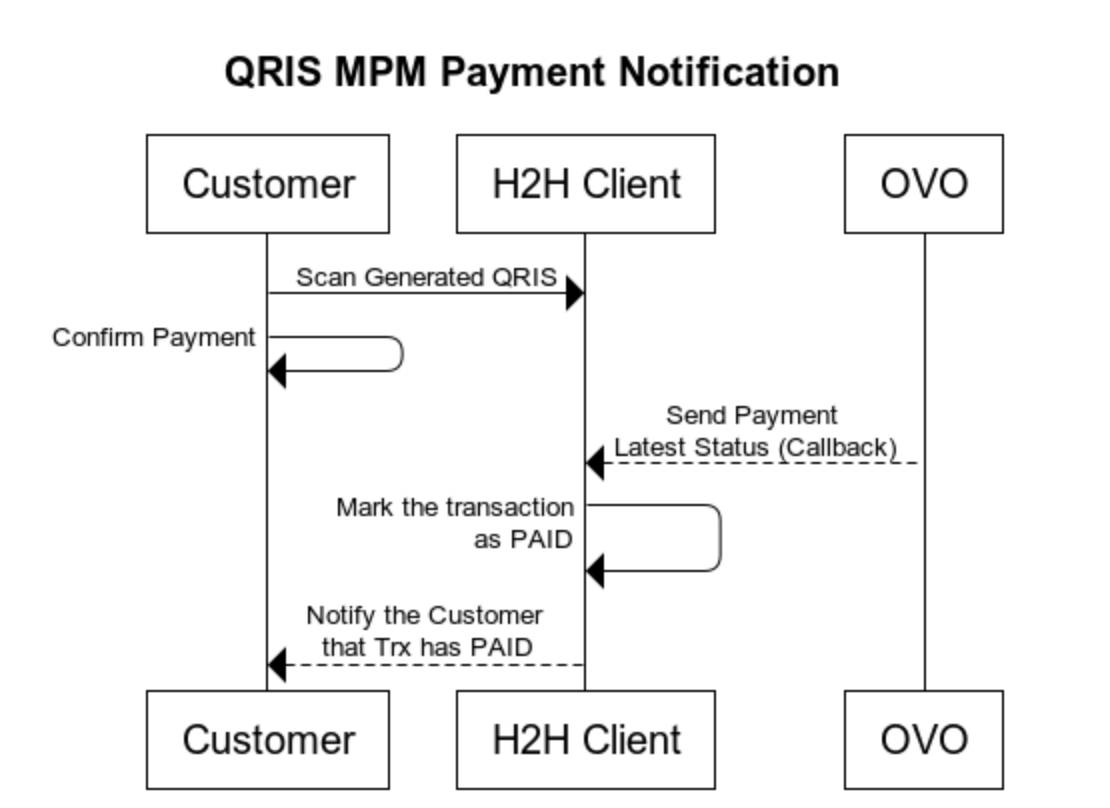

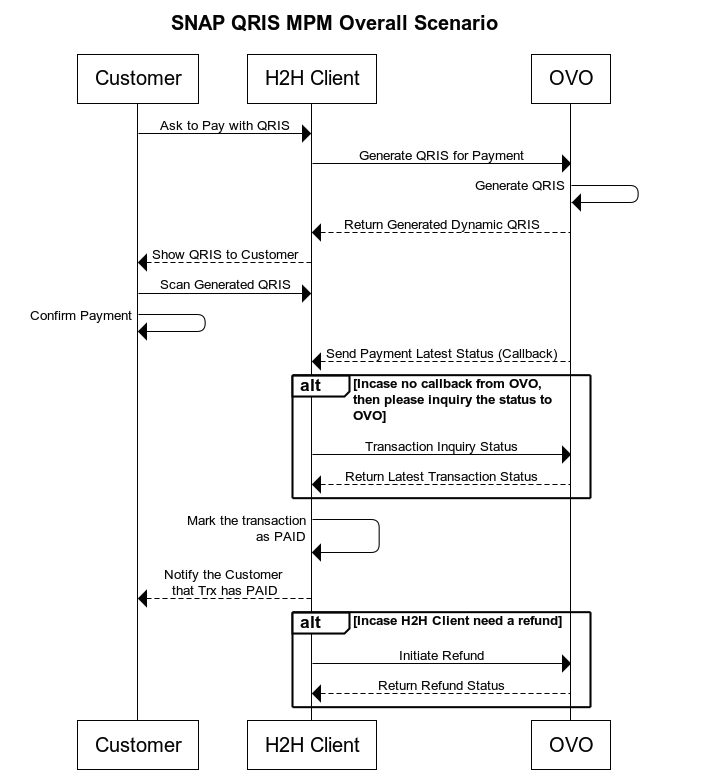

Sequence Diagrams

Environment Variable :

Staging : https://app.byte-stack.net
Production : https://apigw.ovo.id

Signature API Header

API Headers

All the APIs mentioned are to follow the standard header format mentioned here, unless stated otherwise

Parameter	Description	Attribute	Example
Content-Type	String represents indicating the media type of the resource	Mandatory	application/json, application/pdf
Authorization	Represents access_token of a request; string starts with keyword “Bearer ” followed by access_token Not Applicable for B2B Access Token API	Conditional	Bearer eyJraWQiOi...Jzc29zIiwiY
X-CLIENT-KEY	Client's client_id. Use this for these APIs below B2B Access Token Client’s client_id (given at completion registration process)	Conditional	testdynamicqris
X-PARTNER-ID	Client's client_id. Use this for these APIs below Generate QR Refund Inquiry Status Callback	Conditional Need to change to QRIS MPM API Unique ID for a partner	testdynamicqris
X-TIMESTAMP	Client's current local time in yyyy-MM-ddTHH:mm:ssTZD format	Mandatory Client's current local time in yyyy-MM-ddTHH:mm:ssTZD format
X-SIGNATURE	Use Asymmetric B2B Token request Use Symmetric Generate QR Refund Inquiry Status Callback	Mandatory	Please check Signature Section
X-EXTERNAL-ID	Unique ID to avoid duplication. ID reset for every 24 hours. String (36)	Mandatory
CHANNEL-ID	PJP’s channel id Device identification on which the API services is currently being accessed by the end user (customer)	Mandatory

Signature Asymetric

Signature asymmetric is used by OVO to verify that your access token request is not altered by attackers. Generate Signature Asymmetric for Header of Access Token B2B
SHA256withRSA is used to generate the signature with your Private Key as the key.


                    /*

How to use:

- Configure the client ID via request headers with key as x-client-key.

- Configure the private key via environment variable with key as {clientID}_private_key.

- Script will generate / replace environment variables listed in the Output section.



Output (Environment variables):

- gen_signature -> add to X-Signature headers

- gen_timestamp -> add to X-Timestamp headers

*/



eval( pm.environment.get('pmlib_code') )



var moment = require('moment')



const clientID = pm.environment.get("clientID")

var privateKey = pm.environment.get("_private_key")

const timestamp = moment().format("YYYY-MM-DDThh:mm:ss.SSSZ")



console.log("clientID: " + clientID)

console.log("privateKey: " + privateKey)

console.log("timestamp: " + timestamp)



const msg = `${clientID}|${timestamp}`



console.log("msg: " + msg)



var CryptoJS = require("crypto-js")

const hashedMsg = CryptoJS.SHA256(msg)

console.log("hashedMsg: " + hashedMsg)



var sig = new pmlib.rs.KJUR.crypto.Signature({"alg": "SHA256withRSA"})

privateKey = pmlib.rs.KEYUTIL.getKey(privateKey)

sig.init(privateKey)

const hash = sig.signString(msg)



console.log("hash: " + hash)



pm.environment.set("gen_timestamp", timestamp)

pm.environment.set("gen_signature", hash)

Signature Symmetric

Signature is used to verify that your open API service request is not altered by attackers.

Generate Signature Symmetric

SHA-512 HMAC is used to generate the signature with your Client Secret as the key.


                    /*

How to use:

- Configure the client ID via request headers with key as x-partner-id.

- Configure the access token via request headers with key as Authorization and format of value as Bearer {access_token}.

- Configure the secret key via environment variable with key as {clientID}_secret_key.

- Script will generate / replace environment variables listed in the Output section.



Output (Environment variables):

- gen_signature -> add to X-Signature headers

- gen_timestamp -> add to X-Timestamp headers

*/



eval( pm.globals.get('pmlib_code') )



var moment = require('moment')

var CryptoJS = require("crypto-js")



const clientID = pm.environment.get('clientID');

const accessToken = pm.environment.get("access_token");

const timestamp = moment().format("YYYY-MM-DDThh:mm:ss.SSSZ")

const body = pm.request.body.raw

const fullPath = pm.request.url.getPathWithQuery()

const method = pm.request.method



var secret_key = pm.environment.get("_secret_key")



console.log("clientID: " + clientID)

console.log("accessToken: " + accessToken)

console.log("timestamp: " + timestamp)

console.log("body: " + body)

console.log("fullPath: " + fullPath)

console.log("method: " + method)

console.log("secret_key: " + secret_key)



const hashedBody = CryptoJS.SHA256(body).toString()

const finalBody = hashedBody.toLowerCase()



console.log("hashedBody: " + hashedBody)

console.log("finalBody: " + finalBody)



const msg = `${method}:${fullPath}:${accessToken}:${finalBody}:${timestamp}`



console.log("msg: " + msg)



const hash = CryptoJS.HmacSHA512(msg, secret_key).toString()



console.log("hash: " + hash)



pm.environment.set("gen_timestamp", timestamp)

pm.environment.set("gen_signature", hash)

pm.environment.set("api", "/OVOSNAP/v1.0/debit/payment-host-to-host")

How to Generate PKCS1 Private Key and Public Key

Generate Private Key:


                    For Openssl version 1.x.x

openssl genrsa -out private.pem 4096



For Openssl version 3.x.x and above

openssl genrsa -traditional -out private.pem 4096

Generate PKCS1 Public Key:

openssl rsa -in private.pem -RSAPublicKey_out -out public.pem

Generate B2B Token

This API will be used by Merchants to trigger the transactional API. Before generating the token, partners are requested to address this as a requirement, so OVO can configure the necessary.

As per Bank Indonesia requirements, the token expiry for B2B token must be 15 minutes.

Path

POST


                    /OVOSNAP/v1.0/access-token/b2b

Service Code

Request Body

Name	Mandatory	Type	Length	Description
grantType	M	String		"client_credentials”: The client can request an access token using only its client credentials (or other supported means of authentication) when the client is requesting access to the protected resources under its control

Request Sample


                    {

    "grantType": "client_credentials"

}

Response Body

Name	Type	Description
responseCode	String	Response code
responseMessage	String	Response description
accessToken	String	A string representing an authorization issued to the client that used to access protected resources
tokenType	String	The access token type provides the client with the information required to successfully utilize the access token to make a protected resource request (along with type-specific attributes). Token Type Value: "Bearers”: includes the access token string in the request "Mac": issuing a Message Authentication Code (MAC) key together with the access token that is used to sign certain components of the HTTP requests
expiresIn	String	Time in seconds
additionalInfo	Object	Same as in request

Response Sample


                    {

    "responseCode": "2007300",

    "responseMessage": "Successful",

    "accessToken": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJqdGkiOiJiZjFmM2Q3ZS1kOTA3LTRkOWItODJlNC02Y2IxZGYxOTBlOWUiLCJjbGllbnRJZCI6IjZhZTk1N2M0LTI4NjMtNDcxMy1hY2NlLWJhMTJkZTYzNmNmYyIsIm5iZiI6MTYxMTQ2ODg1NiwiZXhwIjoxNjExNDY5NzU2LCJpYXQiOjE2MTE0Njg4NTZ9.-7HRhcyEh4y0qsG2H3DRdu0AeYv3MEJHfWRKhRBYcNU",

    "tokenType": "Bearer",

    "expiresIn": "900",

    "expireIn": "2023-05-15T09:12:24Z",

    "additionalInfo": {}

}

Notes : version : v2.0

Refresh System token Logic

There are two ways in which a partner can refresh the expired tokens

Proactive approach: Partner proactively generates a new B2B token every 15 min, just when the old token is about to expire. This requires partner to be aware of the expiry beforehand
Reactive approach: Partner reacts to the responseCode returned by OVO. If a responseCode corresponding to expiredToken is received while using the B2B token, the partner regenerates the tokens using the above API.
Refer to Refresh Access Token Logic for more information on how to regenerate token using reactive approach
Merchants should refrain from generating multiple B2B tokens before the expiry. A single token should be created and reused throughout the expiry

Response Code

Response Code : HTTP status code + service code + case code

HTTP Status	Service Code	Case Code	Response Message	Description
200	Any	00	Success	Success
400	Any	00	Bad Request	General request failed error, including message parsing failed.
400	Any	01	Invalid Field Format	Invalid format
400	Any	02	Invalid Mandatory Field	Missing or invalid format on mandatory field
401	Any	01	Invalid Token (B2B)	Token found in request is invalid (Access Token Not Exist, Access Token Expiry)

QR Generation

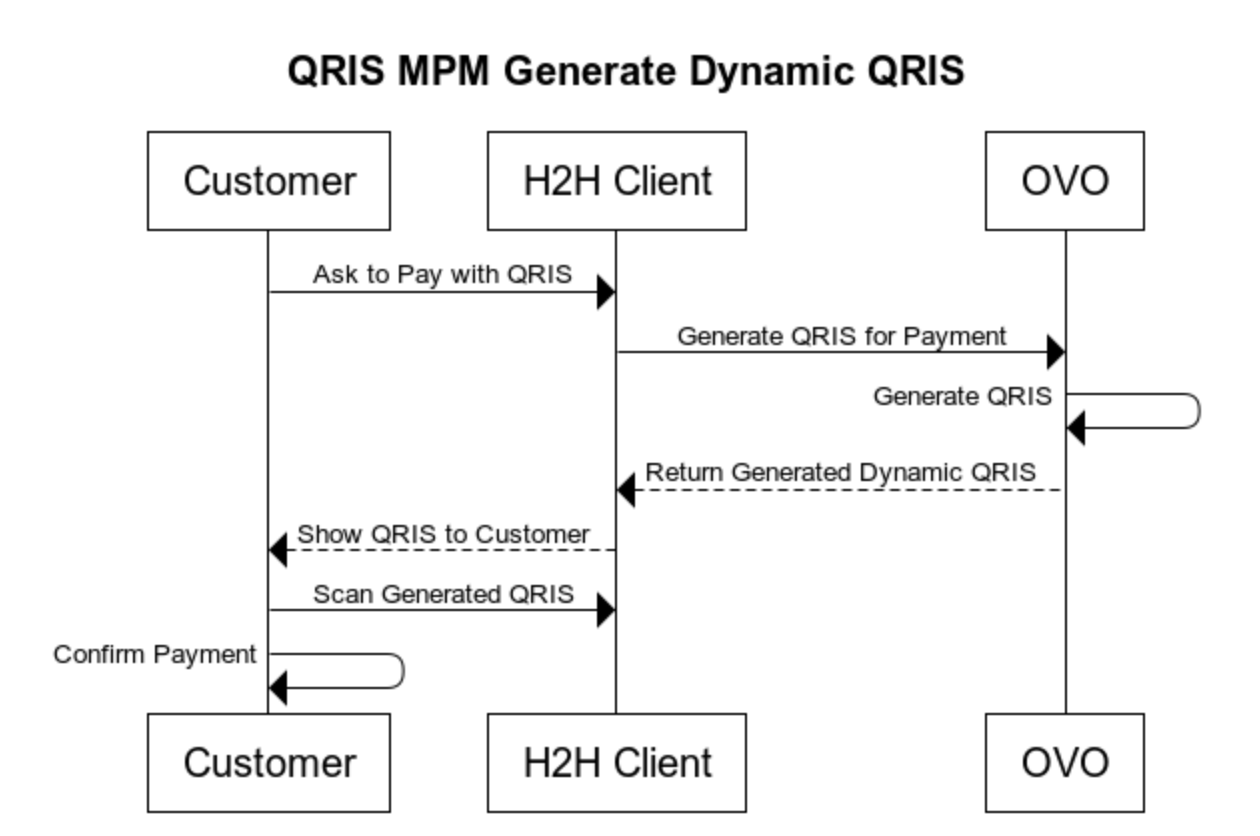

Call Flow: H2H client to OVO backend

Path : Generate QRIS API

POST


                    /OVOSNAP/v2.0/qr/qr-mpm-generate

Environment Variable

Staging : https://app.byte-stack.net
Production : https://apigw.ovo.id

Service Code

Request Body

Name		Mandatory	Type	Length	Description
terminalId		M	String	16	Terminal Identification
merchantId		M	String	64	Merchant identifier that is unique per each merchant
amount		M	Object
	value	M	String	16,2	Net amount of the transaction e.g. 10000.00
	currency	M	String (ISO4217)	3	Currency Ex: IDR
feeAmount		O	Object
	value	O	String	16,2	Transaction fee
	currency	O	String (ISO4217)	3	Currency
partnerReferenceNo		M	String	64	Transaction identifier on service consumer system (traceNo) We can generate it based on UUID
subMerchantId		O	String	32	Sub merchant ID
storeId		O	String	64	Unique shop/store id in merchant side
additionalInfo		M	Object		Additional information
	deviceId	M	String	64	Customer Device ID Can be Hardcoded/Static String
	channel	M	String	64	Channel ID String = “OVO”
	transactionDate	M	String	6	YYMMDD format
	allowedSources	M	String		*format is defined below

*allowedSources : format will be an bitmap, ie, each position in a bitmap will represent one

SOF and if the value is 1, it means that particular SOF is allowed, and if it's 0, it means that

1) terminalID is usually called TID. This is in terminal level
2) merchantID is usually called MID.This is in merchant level

particular SOF is not allowed for making the payment

Example: Bitmap positions are Cash, Points, Paylater

100 : Here the 1st position is for cash and which is set to 1, ie for this QR only cash can be used for making the payment
110 : Here the 1st position is for cash and 2nd for points and both are set to 1, ie for this QR both cash and points can be used for payment

Request Sample


                    {

    "terminalId": "13000004",

    "merchantId": "DBCFJKTLPKN0001",

    "amount": {

        "value": "10000.00",

        "currency": "IDR"

    },

    "feeAmount": {

        "value": "0.00",

        "currency": "IDR"

    },

    "partnerReferenceNo": "234567890123",

    "subMerchantId": "",

    "storeId": "abcd",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "ovo",

        "transactionDate": "191225",

        "allowedSources": "100"

    }

}

Response Body

Name		Type	Description
responseCode		String	Response code = HTTP status code + service code + case code
responseMessage		String	Response description
referenceNo		String	Transaction identifier on service provider system. Must be filled upon successful transaction
partnerReferenceNo		String	Transaction identifier on service consumer system
qrContent		String	QR String MPM. If qrContent is null, then qrUrl or qrImage must be filled.
merchantName		String	Merchant Name
storeId		String	Unique shop id on the merchant side.
terminalId		String	Terminal Identification
	additionalInfo	Object	Same as in request
	deviceId	String	Same as in request
	channel	String	Same as in request
	transactionDate	String	Same as in request
	batchNo	String	Batch Number
	expiry	Integer	In seconds - QR Expiry window

Response Sample

Success


                    {

    "responseCode": "2004700",

    "responseMessage": "Successful",

    "referenceNo": "H2H3c17c56de31847249edfcca0918d",

    "partnerReferenceNo": "TRX-ASK3XCA",

    "qrContent": "00020101021226580006id.ovo01189360091200000035470215lXglBoWv1FKdldj0303UMI51440015ID.OR.GPNQR.WWW0214ID2021075018580303UMI520415205303360540410005802ID5918Dretail Store Satu6008Meulaboh610523350623105074IIwC6G07167sWt1OwfUMzWb7SF6304D8F5",

    "merchantName": "DretailStore001",

    "storeId": "abcd",

    "terminalId": "11762601",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "ovo",

        "transactionDate": "230504",

        "batchNo": "cF9M96",

        "expiry": 75

    }

}

Error


                    {

    "responseCode": "4044708",

    "responseMessage": "Invalid Merchant"

}

Response Code

Response Code : HTTP status code + QR Generation service code + case code

HTTP Status	Service Code	Case Code	Response Message	Description
200	47	00	Success	Success
400	47	00	Bad Request	General request failed error, including message parsing failed.
400	47	01	Invalid Field Format	Invalid format
400	47	02	Invalid Mandatory Field	Missing or invalid format on mandatory field
404	47	08	Invalid Merchant	Merchant is invalid (blocked/not registered/not active)
404	47	18	Invalid QRIS Merchant	Not PTEN Registered
409	47	00	Duplicate {}	Usually like `Duplicate x-external-id` or `partnerReferenceNo`
429	47	00	Too Many Request	Pending Transaction Limit Reached. Try it after some time. Need to settle the pending transaction first before generating the new QR.
500	47	00	General Error	Internal errors happen on OVO service that don't relate to the connectivity.
500	47	01	Internal Server Error	Internal errors happen on OVO service while trying to get the response from internal dependency.
500	47	04	Timeout	Request Timeout

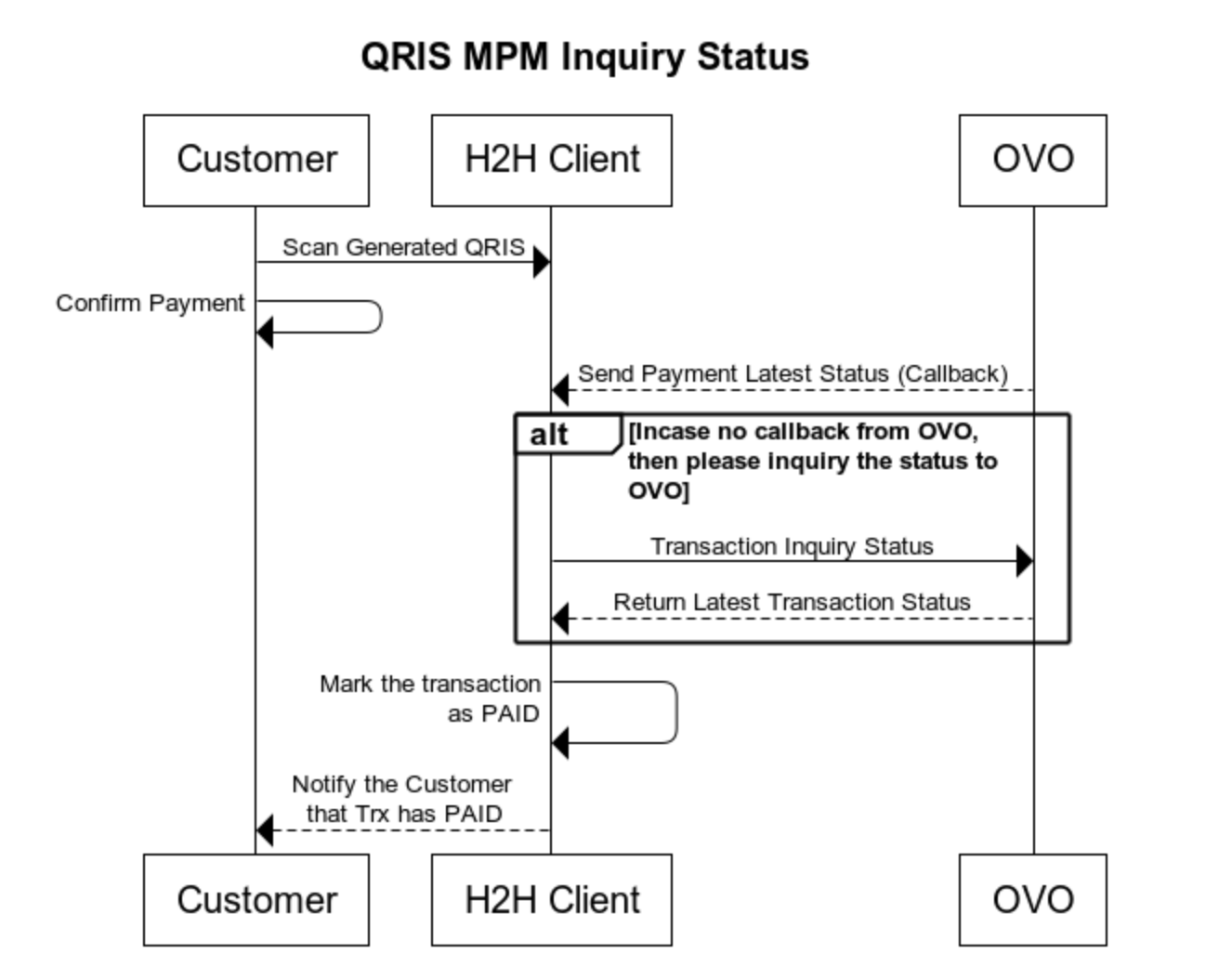

Transaction Inquiry / Check Status

Path : Generate QRIS API

POST


                    /OVOSNAP/v2.0/qr/qr-mpm-query

Environment Variable

Staging : https://app.byte-stack.net
Production : https://apigw.ovo.id

Service Code

Request Body

Name		Mandatory	Type	Length	Description
originalReferenceNo		M	String	64	Original transaction identifier on service provider system
originalPartnerReferenceNo		M	String	64	Original transaction identifier on service consumer system
serviceCode		M	String	2	Transaction type indicator (service code of the original transaction request) Service Code 47
merchantId		M	String	64	Merchant identifier that is unique per each merchant
subMerchantId		O	String	32	Sub merchant ID
externalStoreID		O	String	64	External Store ID
additionalInfo		M	Object		Additional information
	deviceId	M	String		Customer Device ID Can be Hardcoded/Static String
	channel	M	String		Channel ID String = "OVO"
	terminalId	M	String	16	Terminal Identification

Request Sample


                    {

    "originalReferenceNo": "H2H3c17c56de31847249edfcca0918d",

    "originalPartnerReferenceNo": "TRX-ASK3XCA",

    "serviceCode": "47",

    "merchantId": "DretailStore001",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "OVO",

        "terminalId": "13000004"

    }

}

Response Body

Name			Type	Description
responseCode			String	Response code
responseMessage			String	Response description
originalReferenceNo			String	Original transaction identifier on service provider system. Must be filled upon successful transaction
originalPartnerReferenceNo			String	Original transaction identifier on service consumer system
serviceCode			String	Transaction type indicator (service code of the original transaction request) Service Code 47
latestTransactionStatus			String	00 - Payment Success 01 - Refund Pending 03 - Payment Pending 04 - Refund Success 06 - Transaction Failed
transactionStatusDesc			String	Description status transaction
paidTime			String	Transaction date - ISO-8601 Format Format: yyyyMMddHHmmss
terminalId			String	Terminal Identification
amount			Object
	value	String		Net amount of the transaction. If it's IDR then the value includes 2 decimal digits. e.g. IDR 10000,- will be placed with 10000.00
	currency	String		Currency
feeAmount			Object
	value	String		Net amount of the transaction. If it's IDR then the value includes 2 decimal digits. e.g. IDR 10000,- will be placed
	currency	String		Currency
additionalInfo			Object
	deviceId	String		Same as in request
	channel	String		Same as in request
	gracePeriod	Integer		In Seconds - ‘x’ - next inquiry call for this transaction should be triggered to OVO backend, after ‘x’ seconds.
batchNo			String	Batch Number from the first QR Generation
merchantId			String	Same as in request
userName			String	Masked user’s full name
merchantPan			String	mpan for the merchant
customerPan			String	cpan for the customer
phoneNumber			String	Masked Phone Number Ex: \\\\ \\\\ 2001
issuerName			String	Issuer Name ex. OVO, GOPAY, etc.
transactionId			String	Transaction ID is from BE, to be used for refund (Should be unique for each transaction). EDC has to store this transactionId and map it with the transactions.
	transactionSummary
	points	String		if user pays with OVO points
	cash	String		if user pays with OVO cash
	payLater	String		if user pays with OVO paylater

Repsonse Sample


                    {

    "responseCode": "2005100",

    "responseMessage": "Successful",

    "originalReferenceNo": "H2H3c17c56de31847249edfcca0918d",

    "originalPartnerReferenceNo": "TRX-SK3XCA",

    "serviceCode": "47",

    "latestTransactionStatus": "00",

    "transactionStatusDesc": "Payment Success",

    "paidTime": "2023-05-09T18:02:27",

    "terminalId": "213141251124",

    "amount": {

        "value": "10000.00",

        "currency": "IDR"

    },

    "feeAmount": null,

    "additionalInfo": {

        "deviceId": "0001100009537395",

        "channel": "ovo",

        "gracePeriod": 5,

        "batchNo": "cF9UXY",

        "merchantId": "DretailStore001",

        "userName": "H**** L*******",

        "merchantPan": "9630570000051061610",

        "customerPan": "",

        "phoneNumber": "********2580",

        "issuerName": "OVO",

        "transactionId": "7178",

        "transactionSummary": {

            "points": "0",

            "cash": "20000",

            "payLater": "0"

        }

    }

}

Response Code

Response Code : HTTP status code + Transaction Inquiry service code + case code

HTTP Status	Service Code	Case Code	Response Message	Description
200	51	00	Success	Success
400	51	00	Bad Request	General request failed error, including message parsing failed.
400	51	01	Invalid Field Format	Invalid format
400	51	02	Invalid Mandatory Field	Missing or invalid format on mandatory field
404	51	01	Transaction Not Found	Transaction Not Found
404	51	08	Invalid Merchant	Merchant is invalid (blocked/not registered/not active)
404	51	17	Invalid Terminal	Terminal is invalid (blocked/not registered/not active)
409	51	00	Duplicate {}	Usually like `Duplicate x-external-id` or `partnerReferenceNo`
500	51	00	General Error	Internal errors happen on OVO service that don't relate to the connectivity.
500	51	01	Internal Server Error	Internal errors happen on OVO service while trying to get the response from internal dependency.
500	51	04	Timeout	Request Timeout

Callback/Notify Payment Status

Notes

Callback/Notify Payment Status API is used so that OVO can notify clients of the latest payment status in real time. However, when the client does not have the resources/bandwidth to build this API, the H2H Client may NOT implement this API as long as the client himself calls OVO via the Transaction Inquiry/Check Status API to get the latest payment status.
OVO implements a retry mechanism every 5 seconds 3 times if there is no response from the client (timeout). If after 3 attempts STILL haven't gotten a response from the client. So the client is expected to call OVO via Transaction Inquiry/Check Status API to get the latest payment status.

POST


                    .../v1.0/qr/qr-mpm-notify

Service Code

Request Body

Name		Mandatory	Type	Length	Description
originalReferenceNo		M	String	64	Transaction identifier on service provider system
originalPartnerReferenceNo		O	String	64	Transaction identifier on service consumer system
latestTransactionStatus		M	String	2	00 - Payment Success 06 - Transaction Failed
transactionStatusDec		O	String	50	Description Status Transaction
customerNumber		M	String	64	Customer Account Number
destinationNumber		O	String	25	Destination account number
destinationAccountName		O	String	25	Destination account name
amount		M	Object
	value	M	String	16,2	Net amount of the transaction eg. IDR 10000.00
	currency	M	String	3	Currency Example: IDR
externalStoreId		O	String	64	External Store ID
	additionalInfo	M
	deviceId	M	String	64
	channel	M	String	64
	gracePeriod	M	Integer	16	In Seconds - ‘x’ - next inquiry call for this transaction should be triggered to the OVO backend, after ‘x’ seconds.
	terminalId	M	Integer	8	Terminal ID
	userName	M	String	32	Masked ovo user’s full name
	merchantPan	M	String	32	Merchant Pan for the merchant
	customerPan	O	String	32	Customer Pan for the customer
	issuerName	O	String	15	Issuer Name ex. OVO, GOPAY, etc.
	transactionId	M	String	32	Transaction ID is from BE, to be used for refund (Should be unique for each transaction). H2H/POS have to store this transactionId and map it with the transactions.

Request Sample


                    {

    "originalReferenceNo": "H2H784c1b556971470788fe1d80c6de",

    "originalPartnerReferenceNo": "TRX-ASacaSA",

    "latestTransactionStatus": "00",

    "transactionStatusDesc": "Payment Success",

    "customerNumber": "********0001",

    "destinationNumber": "",

    "destinationAccountName": "",

    "amount": {

        "value": "10000.00",

        "currency": "IDR"

    },

    "externalStoreId": "",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "ovo",

        "gracePeriod": 5,

        "terminalId": "11762601",

        "userName": "H**** L*******",

        "merchantPan": "936009120000003547",

        "customerPan": "",

        "issuerName": "OVO",

        "transactionId": "7136"

    }

}

Response Body

Name		Type	Description
responseCode		String	Response code
responseMessage		String	Response description
	additionalInfo	Object
	deviceId	String	Same as in request
	channel	String	Same as in request

Response Sample


                    {

    "responseCode": "2005200",

    "responseMessage": "Request has been processed successfully",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "mobilephone"

    }

}

Refund

Path : Generate QRIS API

POST


                    /OVOSNAP/v2.0/qr/qr-mpm-refund

Environment Variable

Staging : https://app.byte-stack.net
Production : https://apigw.ovo.id

Service Code

Request Body

Name		Mandatory	Type	Length	Description
originalReferenceNo		O	String	64	Original transaction identifier on service provider system
originalPartnerReferenceNo		M	String	64	Original transaction identifier on service consumer system
merchantId		M	String	64	Merchant identifier that is unique per each merchant
subMerchantId		O	String	32	Sub Merchant ID
externalStoreId		O	String	64	External Store ID
partnerRefundNo		M	String	64	ReferenceNumber from PJP AIS for the refund.
refundAmount		M	Object
	value	M	String	16,2	Net amount of the refund
	currency	M	String	3	Currency
reason		O	String	256	Refund reason
	additionalInfo	M	Object
	deviceId	M	String	64	Customer Device ID Can be Hardcoded/Static String
	channel	M	String	64	Customer Channel String = “OVO”
	terminalId	M	String	16	Terminal Identification
	batchNo	M	String	64	Batch Number from the first QR Generation Getting the value from Generate QR or Transaction Inquiry
	transactionId	M	String	32	Transaction ID is from BE, to be used for refund (Should be unique for each transaction). H2H/POS have to store this transactionId and map it with the transactions.

Request Sample


                    {

    "originalPartnerReferenceNo": "H2H784c1b556971470788fe1d80c6de",

    "originalReferenceNo": "TRX-ASacaSA",

    "merchantId": "DretailStore001",

    "partnerRefundNo": "REFUND-TRX-SK3XCA",

    "subMerchantId": "310928924949487",

    "externalStoreId": "124928924949487",

    "refundAmount": {

        "value": "1000.00",

        "currency": "IDR"

    },

    "reason": "Customer complain",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "mobilephone",

        "terminalId": "11762601",

        "batchNo": "cF9UXY",

        "transactionId": "7178"

    }

}

Response Body

Name		Type	Description
responseCode		String	Response code
responseMessage		String	Response description
originalPartnerReferenceNo		String	Original transaction identifier on service provider system. Must be filled upon successful transaction
originalReferenceNo		String	Original transaction identifier on service consumer system
referenceNo		String	referenceNumber
partnerRefundNo		String	Same as in request
refundAmount		Object
	value	String	Same as in request
	currency	String	Same as in request
refundTime		String	Refund time. ISO 8601
	additionalInfo	Object
	deviceId	String	Same as in request
	channel	String	Same as in request
	terminalId	String	Terminal Identification
	merchantId	String	Same as in request
	merchantName	String	Same as in request
	phoneNumber	String	Masked Phone Number Ex: ** ** 2001
	merchantPan	String	mpan for the merchant
	customerPan	String	cpan for the customer
	userName	String	Masked user’s full name
	issuerName	String	Issuer Name ex. OVO, GOPAY, etc.

Response Sample


                    {

    "responseCode": "2007800",

    "responseMessage": "Request has been processed successfully",

    "originalPartnerReferenceNo": "2020102900000000000001",

    "originalReferenceNo": "2020102977770000000009",

    "referenceNo": "",

    "partnerRefundNo": "239850918204981205970",

    "refundAmount": {

        "value": "10000.00",

        "currency": "IDR"

    },

    "refundTime": "2023-05-09T18:02:27",

    "additionalInfo": {

        "deviceId": "12345679237",

        "channel": "mobilephone",

        "terminalId": "13000004",

        "merchantId": "DBCFJKTLPKN0001",

        "merchantName": "Delicio LK",

        "phoneNumber": "89********",

        "merchantPan": "9630570000051061610",

        "customerPan": "9360091800051061610",

        "userName": "te********",

        "issuerName": "OVO"

    }

}

Response Code

Response Code : HTTP status code + Refund service code + case code

HTTP Status	Service Code	Case Code	Response Message	Description
200	78	00	Success	Success
202	78	00	Request in Progress	Refund pending and is still being processed
400	78	00	Bad Request	General request failed error, including message parsing failed.
400	78	01	Invalid Field Format	Invalid format
400	78	02	Invalid Mandatory Field	Missing or invalid format on mandatory field
403	78	03	Suspected Fraud	Suspected fraud from OVO Internal Risk checking
403	78	24	Refund Expired	Refunds will be allowed on the same day.
404	78	01	Transaction Not Found	Transaction Not Found
404	78	08	Invalid Merchant	Merchant is invalid (blocked/not registered/not active)
404	78	13	Invalid Amount	Amount that wants to be refunded is not the same as the success payment
404	78	17	Invalid Terminal	Terminal is invalid (blocked/not registered/not active)
409	78	00	Duplicate {}	Usually like `Duplicate x-external-id` or `partnerReferenceNo`
500	78	00	General Error	Internal errors happen on OVO service that don't relate to the connectivity.
500	78	01	Internal Server Error	Internal errors happen on OVO service while trying to get the response from internal dependency.
500	78	04	Timeout	Request Timeout

SNAP Dynamic QRIS

Technical Documentation v1.3H2H Dynamic QRIS MPM SNAP

Sequence Diagrams

Signature API Header

API Headers

Signature Asymetric

Signature Symmetric

Generate Signature Symmetric

How to Generate PKCS1 Private Key and Public Key

Generate B2B Token

Path

Service Code

Request Body

Request Sample

Response Body

Response Sample

Refresh System token Logic

Response Code

QR Generation

Path : Generate QRIS API

Environment Variable

Service Code

Request Body

Request Sample

Response Body

Response Sample

Response Code

Transaction Inquiry / Check Status

Path : Generate QRIS API

Environment Variable

Service Code

Request Body

Request Sample

Response Body

Repsonse Sample

Response Code

Callback/Notify Payment Status

Notes

Service Code

Request Body

Request Sample

Response Body

Response Sample

Refund

Path : Generate QRIS API

Environment Variable

Service Code

Request Body

Request Sample

Response Body

Response Sample

Response Code

Technical Documentation v1.3
H2H Dynamic QRIS MPM SNAP
